How to Set Up My PetSafe® ScoopFree® Top-Entry Ultra Self-Cleaning Litter Box
Welcome
to your new PetSafe® ScoopFree® Top-Entry Ultra Self-Cleaning Litter Box!
Keep in Mind
Installing the litter box will take approximately one hour.
Acclimation time will vary depending on the cat.
Avoid placing in areas with high humidity.
Preparation
Materials
Please have the following contents from the box available prior to setup:

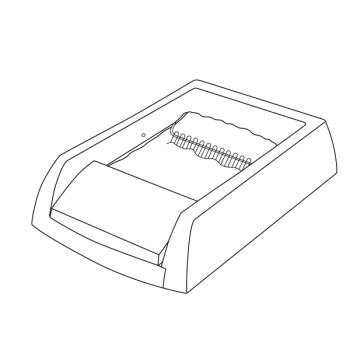

Self-cleaning litter box
Top-entry privacy hood
Litter tray with lid

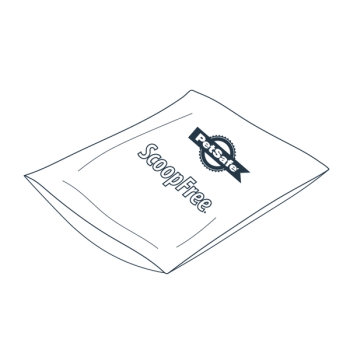

Crystal litter bag

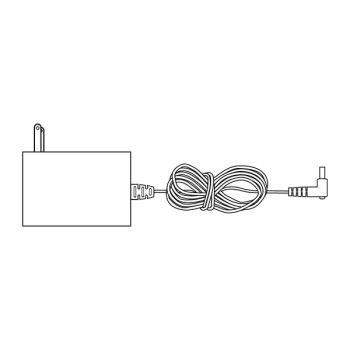

Power adaptor

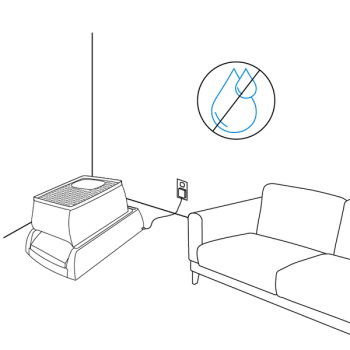

Litter Box Location
Place the Litter Box in an Indoor Area That Is:
Flat
The litter box operates best when placed on a flat surface.
Near an outlet
The power adaptor must be plugged into a standard electrical outlet.
Dry
Moisture in high humidity rooms, such as a bathroom or laundry room, can reduce the lifespan of the litter tray.
Insert the Litter Tray

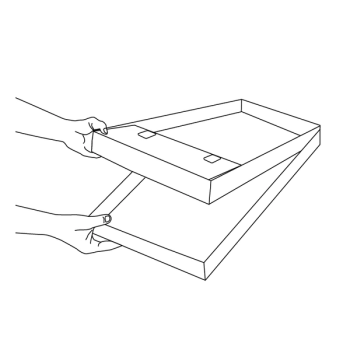

Remove the lid from the litter tray and place underneath to reduce chance for leakage.

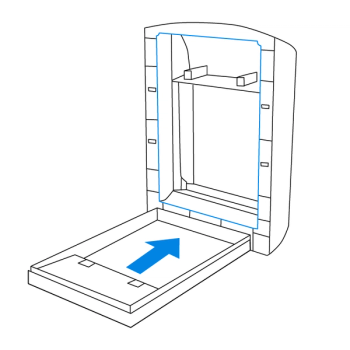

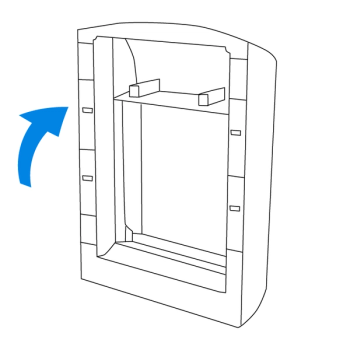

Set the litter box vertical onto the back legs.

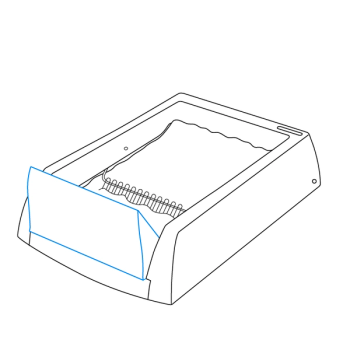

Slide the litter tray against the litter box with the waste bin facing towards the back. Ensure the tray is lined up with the inner litter box frame.

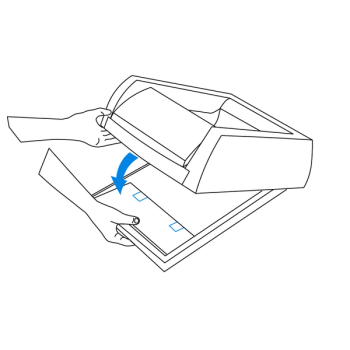

Lower the litter box over the litter tray. Listen for a click as the magnets on the bottom of the litter box touch the magnets on the waste bin.

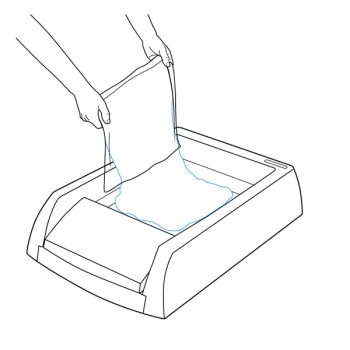

Empty the bag of crystal litter into the litter tray and spread evenly.
Note: For extra odor control, sprinkle a handful of crystal litter into the waste bin.

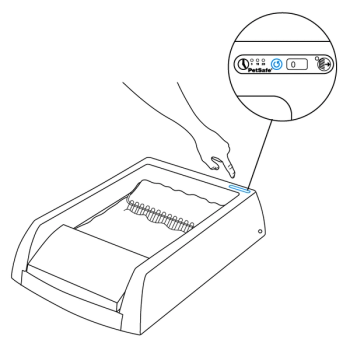

Litter Box Settings
Rake Timer Button
Changes the rake timer to the preferred start time of 5, 10 or 20 minutes after your cat leaves the litter box.
Use Counter
Counts how many times the rake performs an automatic scoop cycle. Press the reset button to reset the counter.

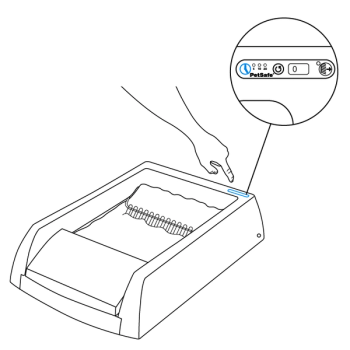

Manual Rake Button
Sends the rake on a scoop cycle and tests that the rake is properly scooping.

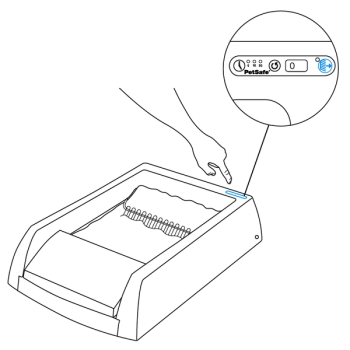

Press the manual rake button.
Confirm that the waste bin automatically rises and lowers as the rake performs a scoop cycle.

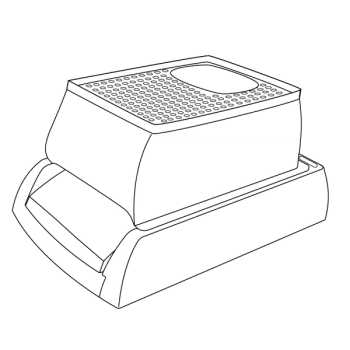

Attach Privacy Hood

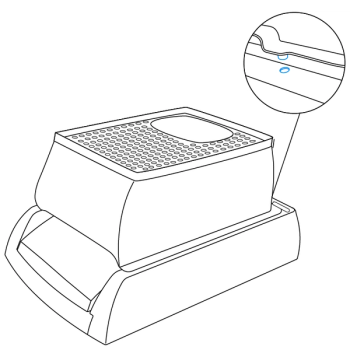

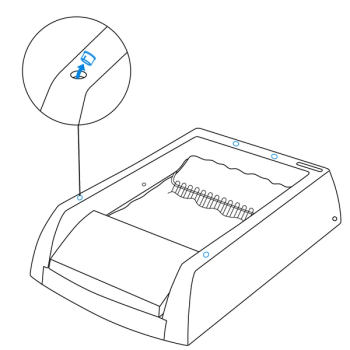

Remove the four plugs on top of the litter box frame.
Line up the pegs on the privacy hood with the holes on the litter box. Insert the pegs at the back of the litter box first, then the front.
Adjust the Hood Tray

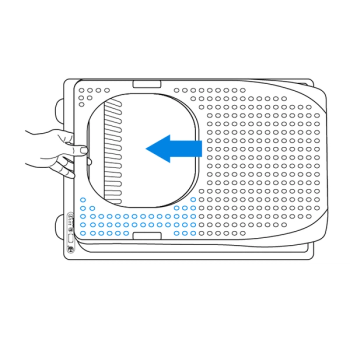

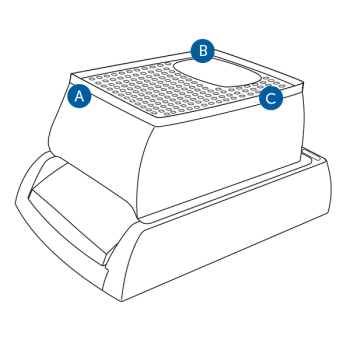

The Top-Entry Hood has a grated tray to help eliminate litter tracking. Align the hood tray so that your cat must walk over the holes, allowing more litter to fall back into the litter box.
Front end
Entry hole close to wall
Wider side collects more litter

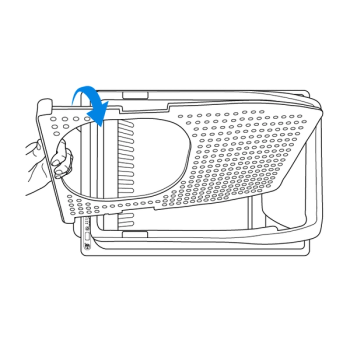

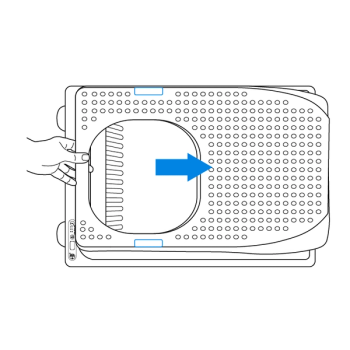

To Adjust the Hood Tray
Pull the hood tray out from the holding slots, then lift the tray to remove it.
Flip the tray over.
Slide the tray back into the holding slots.
Contact Customer Care
If you need further assistance, please contact our customer care team.
