How To Set Up My PetSafe® Hydrosphere™ 60oz Stainless Steel Fountain
Important Information
Before using the fountain, clean all parts, including the pump. For more information, visit How To Disassemble and Clean My PetSafe® Hydrosphere™ 60oz Stainless Steel Fountain.
Assemble the Fountain
Flip the fountain base over, pull the rubber cover from the cord port, and insert the power cord into the USB-C port. Weave the cord through the channel so the base sits flat.
Return the base upright and place it in a location where your pet will use it.

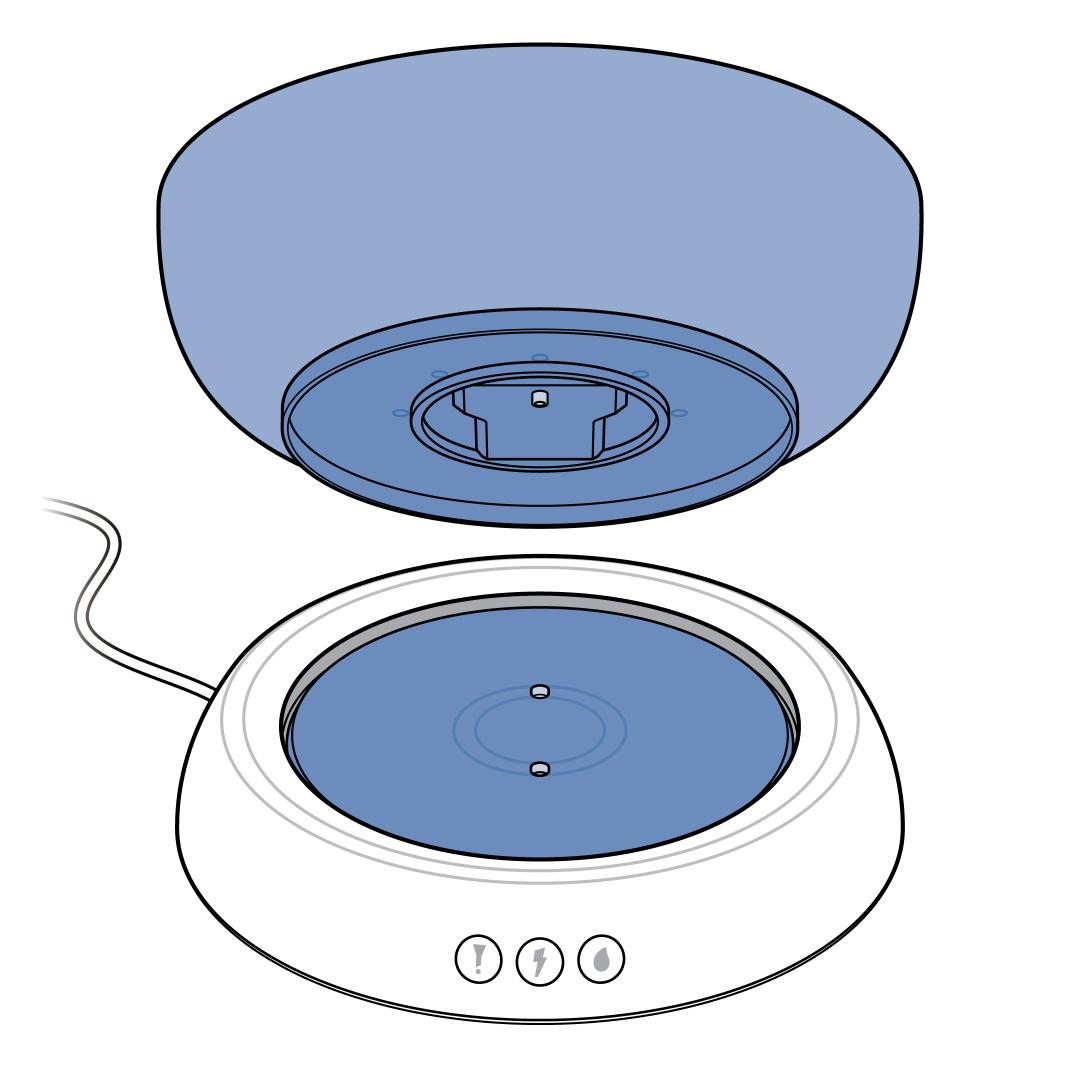

Place the bowl on the base. Rotate the bowl until it aligns and connects with the base.

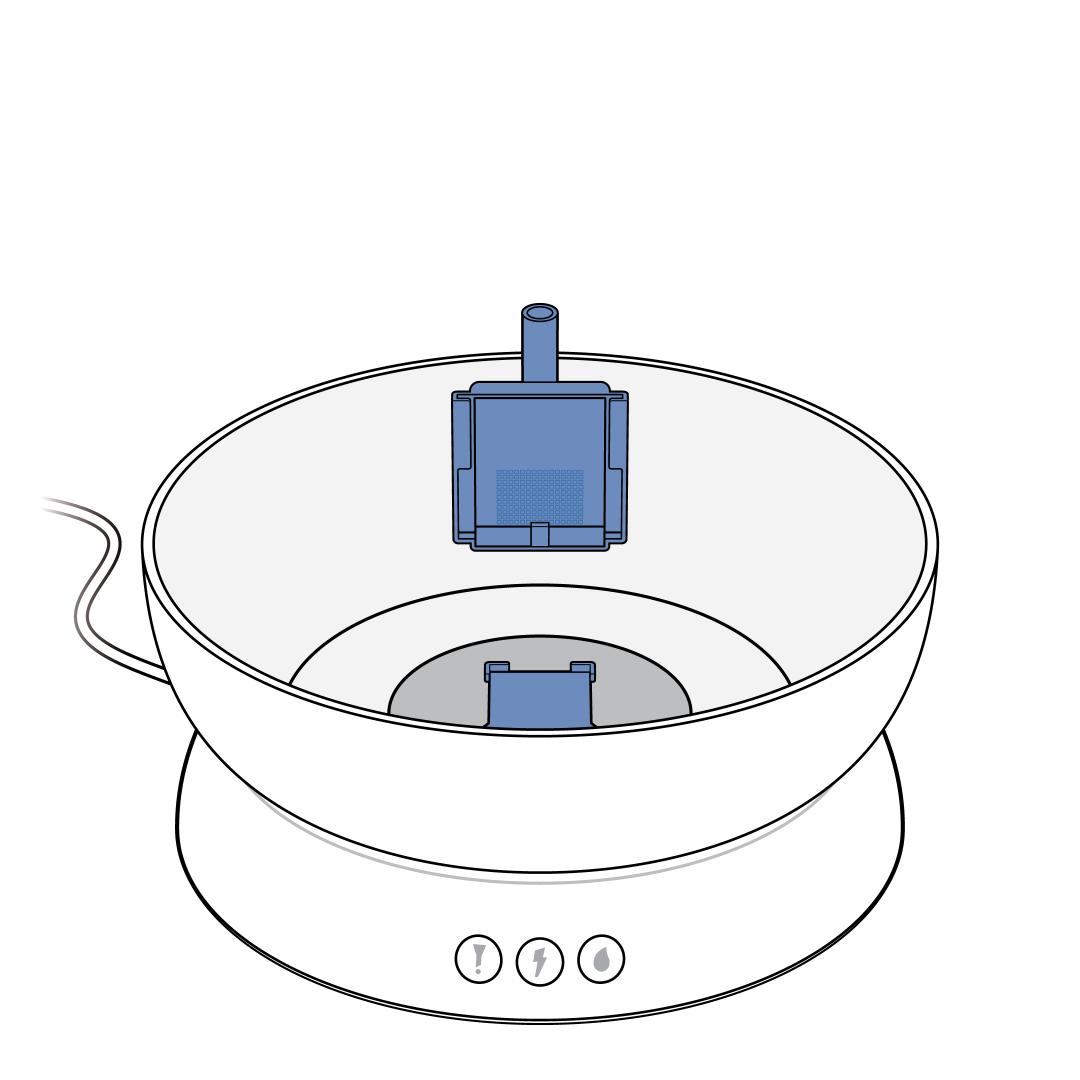

Place the pump in the bottom of the bowl, within the indentation. You will feel the pump connect magnetically when placed properly.

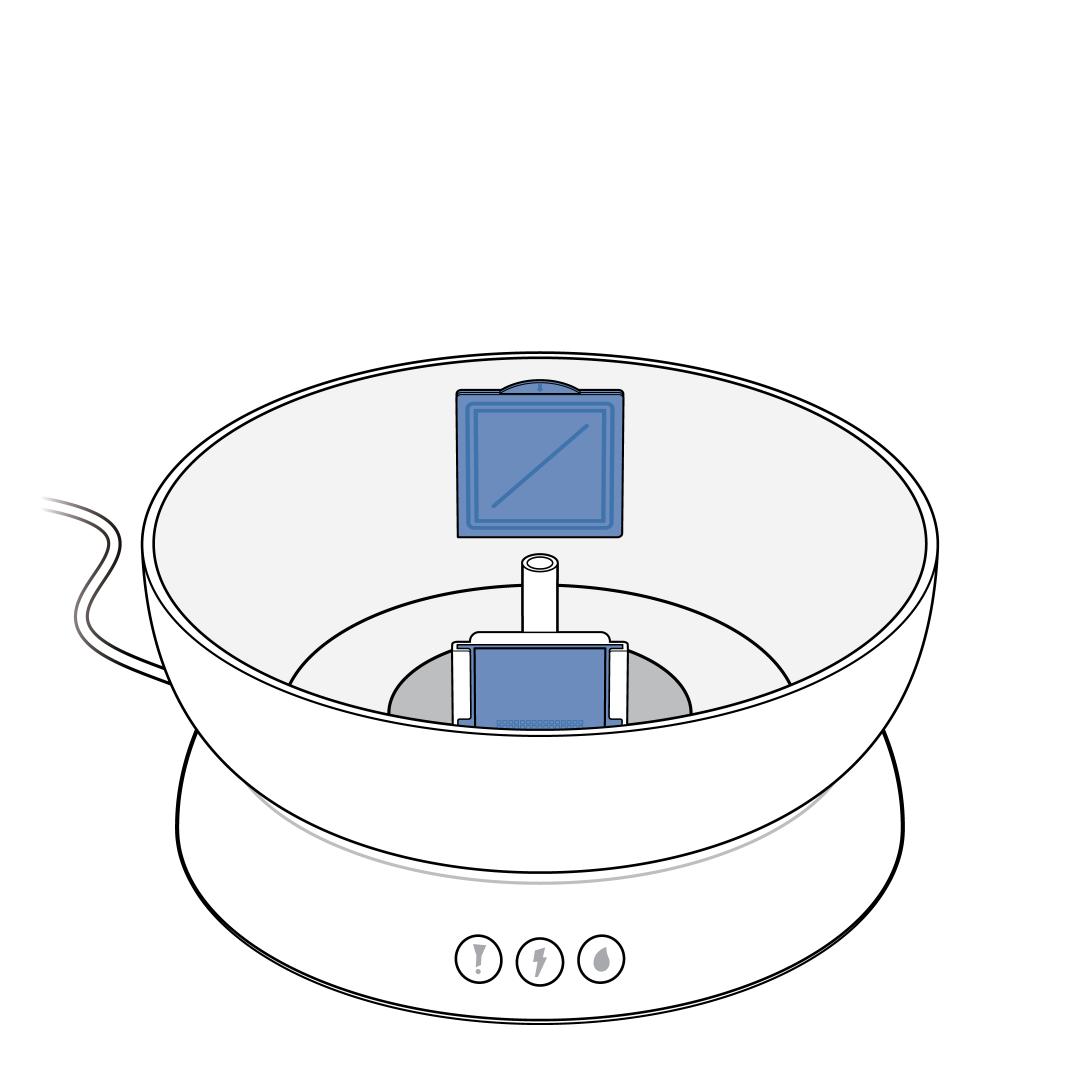

Unwrap and rinse the filter. Hold the filter by the top tab and slide it in the filter bracket on the pump faceplate. The filter is reversible so it does not matter which side (black or white) faces the pump.

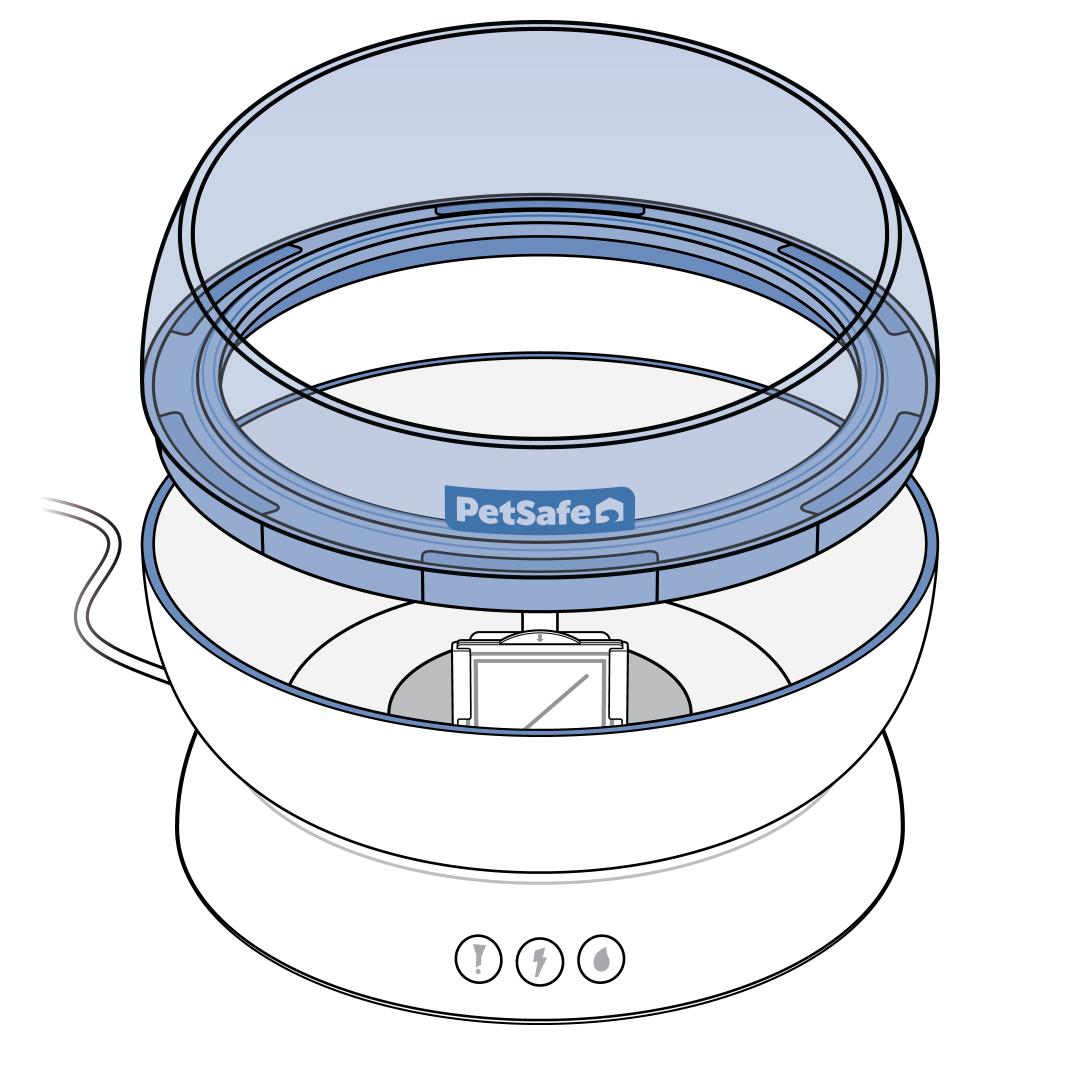

Place the splash guard on the edge of the bowl with the shortest section at the front of the fountain.
Add water to the fill line on the inside of the bowl.

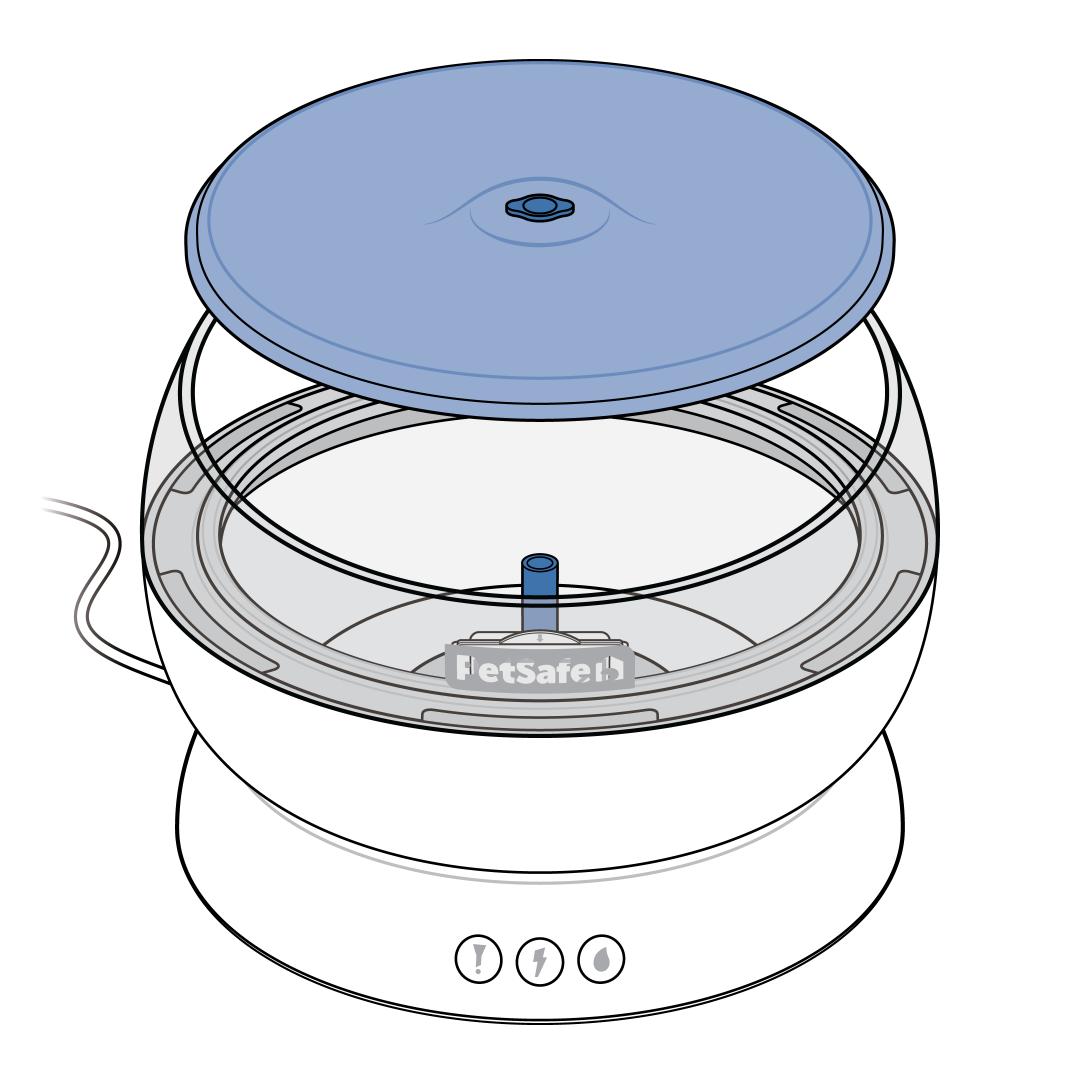

Place the tray within the splash guard, ensuring the rubber gasket in the center aligns with the tube on the pump.
Plug the other end of the power cord into a USB-A adaptor or outlet.
Press and release the power button to turn the fountain on. The power light will glow solid blue. The water level light will briefly pulse red while the pump primes with water, then turn off and the water will begin to flow from the center of the fountain.
