How to Install the PetSafe® Plastic Pet Door

Important Information

Before beginning installation, it is best to gather the supplies you will need. This pet door fits doors that are 1/16 to 1 ¾inchesthick. If your door does not fall within those measurements, you may need additional supplies.

What Is Included:

Items In BoxItems In Box
  • Closing Panel
  • Interior Frame with Flap
  • Plastic Core Covers
  • Cutting Template
  • Exterior Frame
  • Hex Nuts
  • Nylon Screws

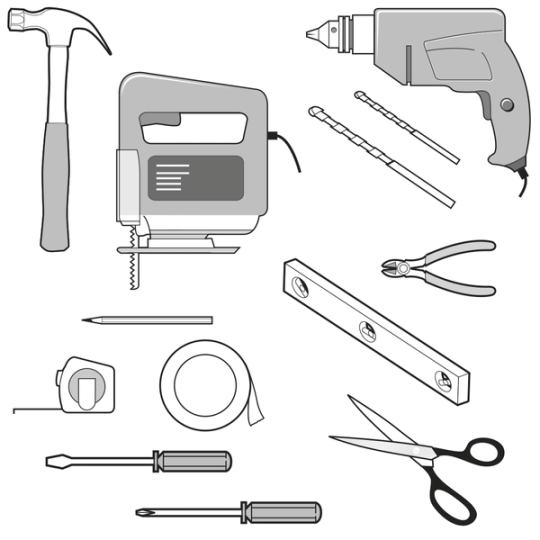

Tools You Will Need:

Needed toolsNeeded tools
  • Hammer
  • Jigsaw
  • Drill
  • Drill Bit: 3/4 inch
  • Philips and Flat-Head Screw Drivers
  • Masking Tape and Duct Tape
  • Wire Cutter
  • Scissors
  • Pencil
  • Tape Measure
  • Level
  • Weatherproof Caulk
  • Safety Gear

How to Install a Dog Door

Measure and Mark

It is important to your pet’s well-being to measure and mark your pet’s shoulder height for proper installation placement. If there are multiple pets, use the tallest pet’s shoulder height measurement.

Measure & mark pet's shoulder height on doorMeasure & mark pet's shoulder height on door

Measure and mark your pet’s shoulder height on the door with a pencil using either method:

  • Have your pet stand next to the door and mark their shoulder height.
  • Use a measuring tape to measure your pet from the floor to their shoulder. Then apply that measurement to the door.

Use a level to draw a horizontal line through the height marking to extend it.

Use Level And Pencil To Mark DoorUse Level And Pencil To Mark Door

Decide where on your door to install the pet door.

  • The pet door does not have to be installed in the center of your door. You may choose to adjust it to the left or right.
  • If you are installing it in a paneled door, align it within a panel for ease of installation.

Use a level to draw a vertical line for the pet door to be centered on. If you are placing the pet door centered on your door, draw a vertical line for the center of your door.

Prep the Door

Remove pinsRemove pins

Remove the pins from the hinges using the flat-head screwdriver and hammer to remove the door from the doorframe.

Place Door On TablePlace Door On Table

Place the door, interior side up, on a raised level surface suitable for drilling and cutting, such as a pair of sawhorses. Clamp or weigh down the door to prevent it from moving.

Place the Template

Tape Template Onto DoorTape Template Onto Door

Cut the template according to your pet door size and tape it on your door, aligning the height and center lines you marked to the ones on the template.

Trace TemplateTrace Template

Make sure the template is at least 3 inches from the bottom and sides of the door to keep the structural integrity of the door. If it is less than that, you will need to adjust your lines accordingly to ensure the 3-inch minimum.

Carefully trace around the template, making sure to trace underneath the tape and connect the corners. Then remove the template.

Cut the Pet Door Opening

Using a DrillUsing a Drill

Ensure the area underneath where you have marked for removal is clear before drilling and cutting.

Drill 3/8 inch holes on the inside corners of the traced outline. Hold the drill steady at a 90-degree angle and use a framing square to keep it straight.

Using a JigsawUsing a Jigsaw

Place the jigsaw blade into a corner hole, making sure the blade goes entirely through the door, and cut along the marking. Continue until an opening is made. You may need to finely trim the corners to create a 90-degree angle for the door to fit.

Fit Core Covers

Measure Thickness Of DoorMeasure Thickness Of Door

Measure the thickness of your door. Add 7/8 inch to the measurement and notate this measurement.

Cut Core CoverCut Core Cover

On each core cover piece, measure and mark the notated measurement. Cut along the grooved edge that the plastic core covers to remove the excess.

Snap Core Covers Into FrameSnap Core Covers Into Frame

Snap the core covers into the tabs on the interior frame. The core covers may need to be trimmed to meet at the corners. Use duct tape around the corners to improve weather resistance. Trim any excess tape.

Install the Frame

Setup Interior And Exterior Frames Onto DoorSetup Interior And Exterior Frames Onto Door

Check the fit of the frames in the opening. Place the interior frame into the cutout from the interior side of the door. Then, place the exterior frame into the underside of the door, aligning the core covers into tabs of the exterior frame. If either frame does not easily fit inside the opening, you may need to make adjustment cuts to the opening before proceeding with installation.

Install Nylon ScrewsInstall Nylon Screws

Hold the two frames together. Insert the nylon screws into the frame, then twist a hex nut on the screw from the exterior side until snug.

Screw In Criss Cross PatternScrew In Criss Cross Pattern

Using a Philips screwdriver, evenly tighten the screws moving from one screw to the next in a Criss-Cross pattern as much as possible, until all screws are hand-tight. It may be necessary to adjust screws to make sure the pet door fit is correct.

Please ensure you do not over-tighten the screws.

Cut Off Excess Screw LengthsCut Off Excess Screw Lengths

Cut off excess screw lengths with wire cutters. Hold wire cutters flush with the frame for a clean, level cut. Any rough edges of nylon screws left by wire cutters should be removed with a metal file.

Caulk ExteriorCaulk Exterior

Caulk around the exterior frame and inside threshold where the core covers meet for weather resistance. Fill in any gaps between the door and the frame with caulk.

We recommend not caulking the interior frame as it can prevent you from snapping on the closing panel.


Contact Customer Care

If you need further assistance, please contact our customer care team.
