How to Install My PetSafe® Pet Containment Fence
You must know the basics first! The signal that runs through the wire is a radio signal. Things that can interfere with the signal are:
- Large metal objects.
- Circuit breaker box too close to the wall unit.
- Improper splices.
- Running the wire against the house or across the roof.
Below are some best practices for a successful installation:
- Have your utilities marked.

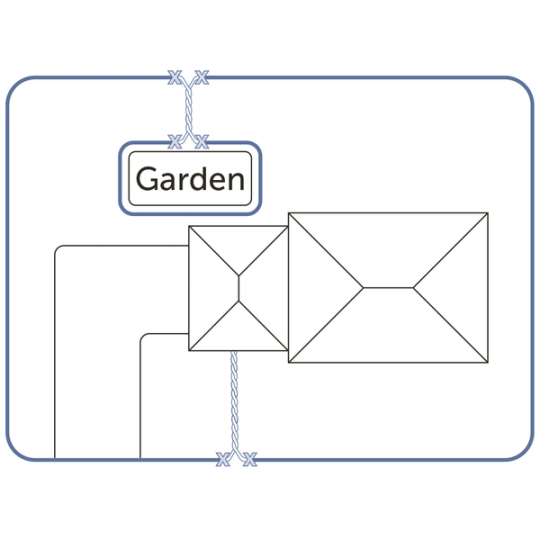

- The wire must be laid in one continuous loop.
- The wire must remain a minimum of 5 feet away from underground utilities, and wires in the ground. Even a dead wire in the ground will interfere if placed too closely. If crossing underground utilities or wires, they must cross at a 90-degree angle.
- The wire must have rounded corners.

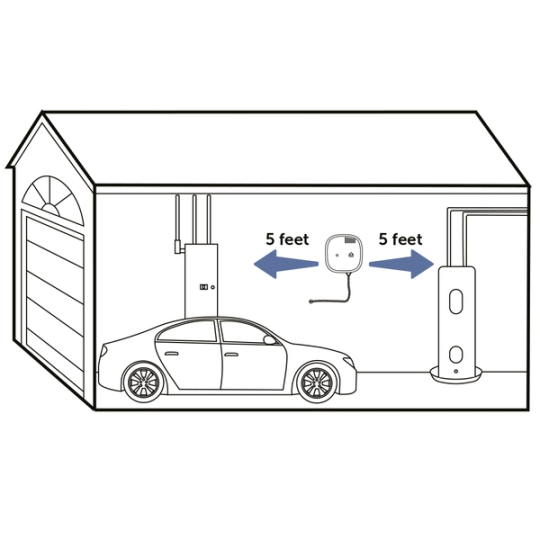

Identify the location for your wall unit. You will need to find an area that will not interfere with the signal and has an outlet for the unit and space to run the wire.

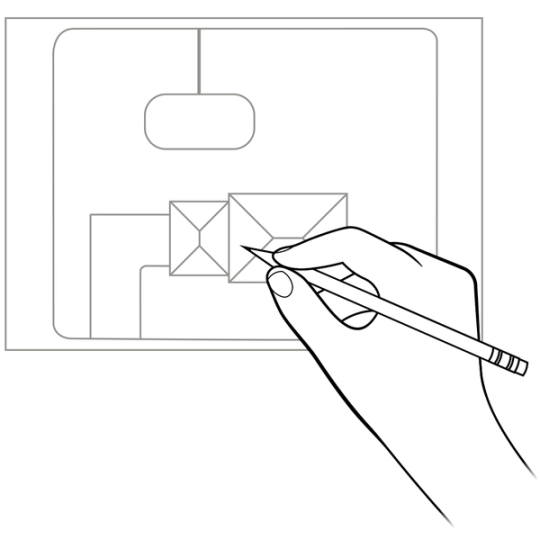

Draw your layout! It is easier to identify and fix possible layout issues and challenges before you begin laying wire. For assistance with deciding your layout click HERE, visit Pet Fence Planner, or contact Customer Care for further assistance.

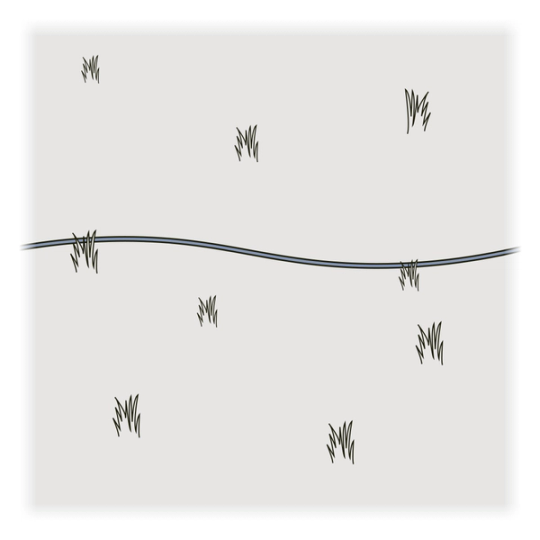

Lay your wire but DO NOT BURY it yet.

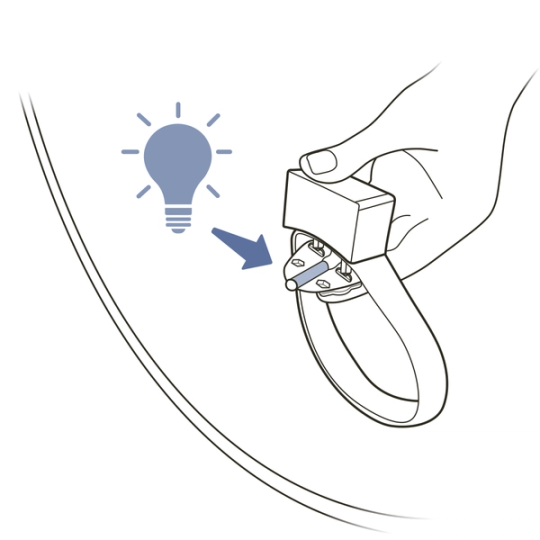

Set your wall unit settings and boundary width. Test your layout and adjust your settings to meet your containment needs.

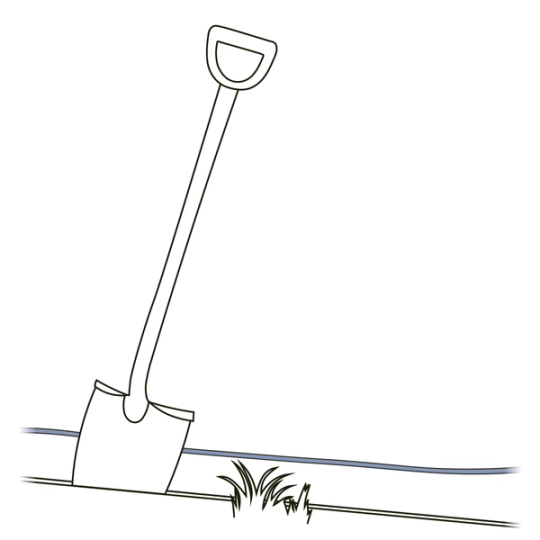

Bury your wire 1-3” deep. If there are areas you are unable to bury your wire, you can run the wire through PVC or an old garden hose to protect the wire and insulation.
Save your drawing and mark the location of any splices made. This can make any future wire repairs significantly easier!
