How To Clean & Reassemble My PetSafe® ScoopFree® Crystal Classic Self-Cleaning Litter Box
Important Information
Regular monthly cleaning can reduce odor and extend the life of your litter box and litter trays.
Avoid using soaps, cleaners or chemicals that have a strong odor or contain scents that are cat-repellant, like citrus, lavender, peppermint, etc.

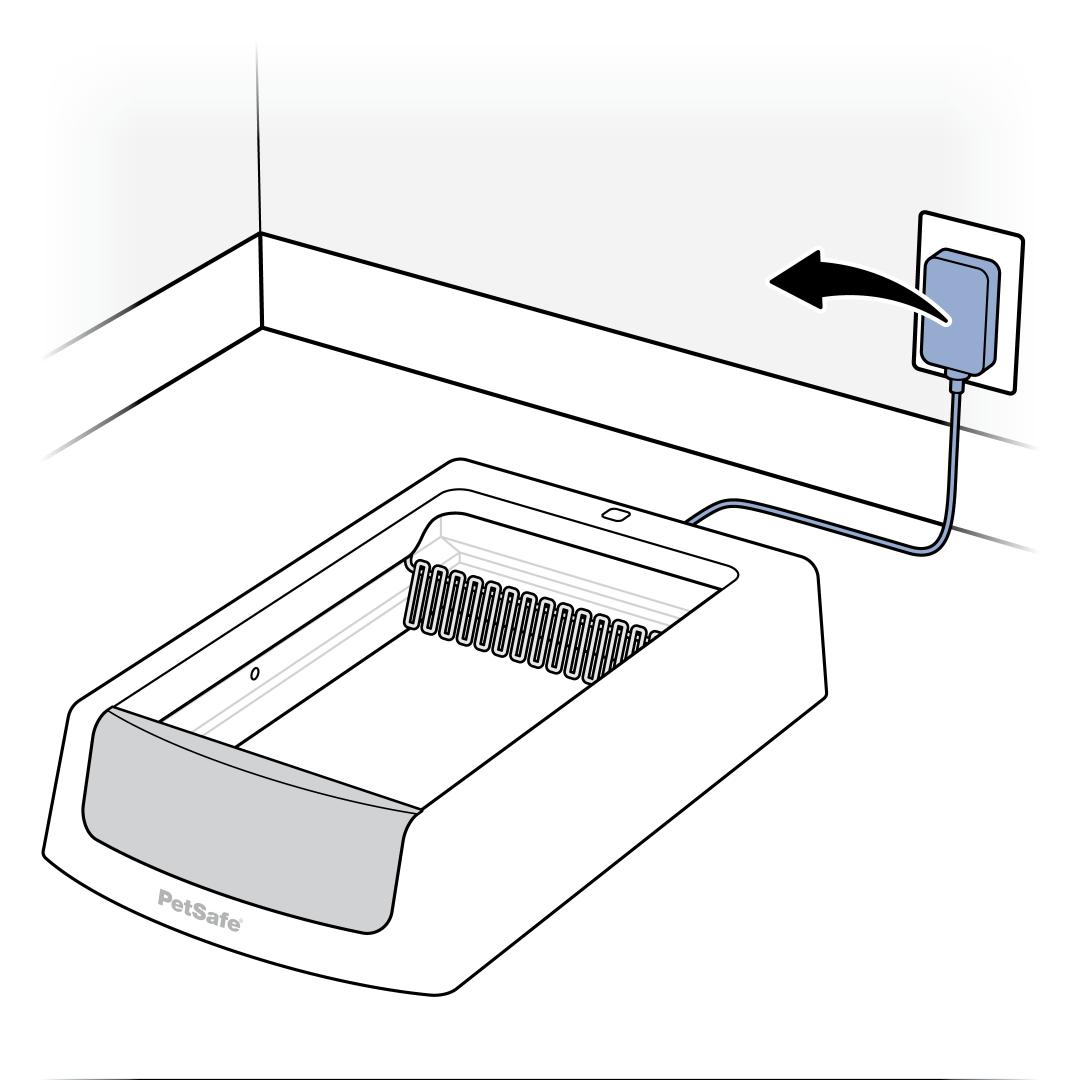

Unplug the power adaptor from the wall outlet.

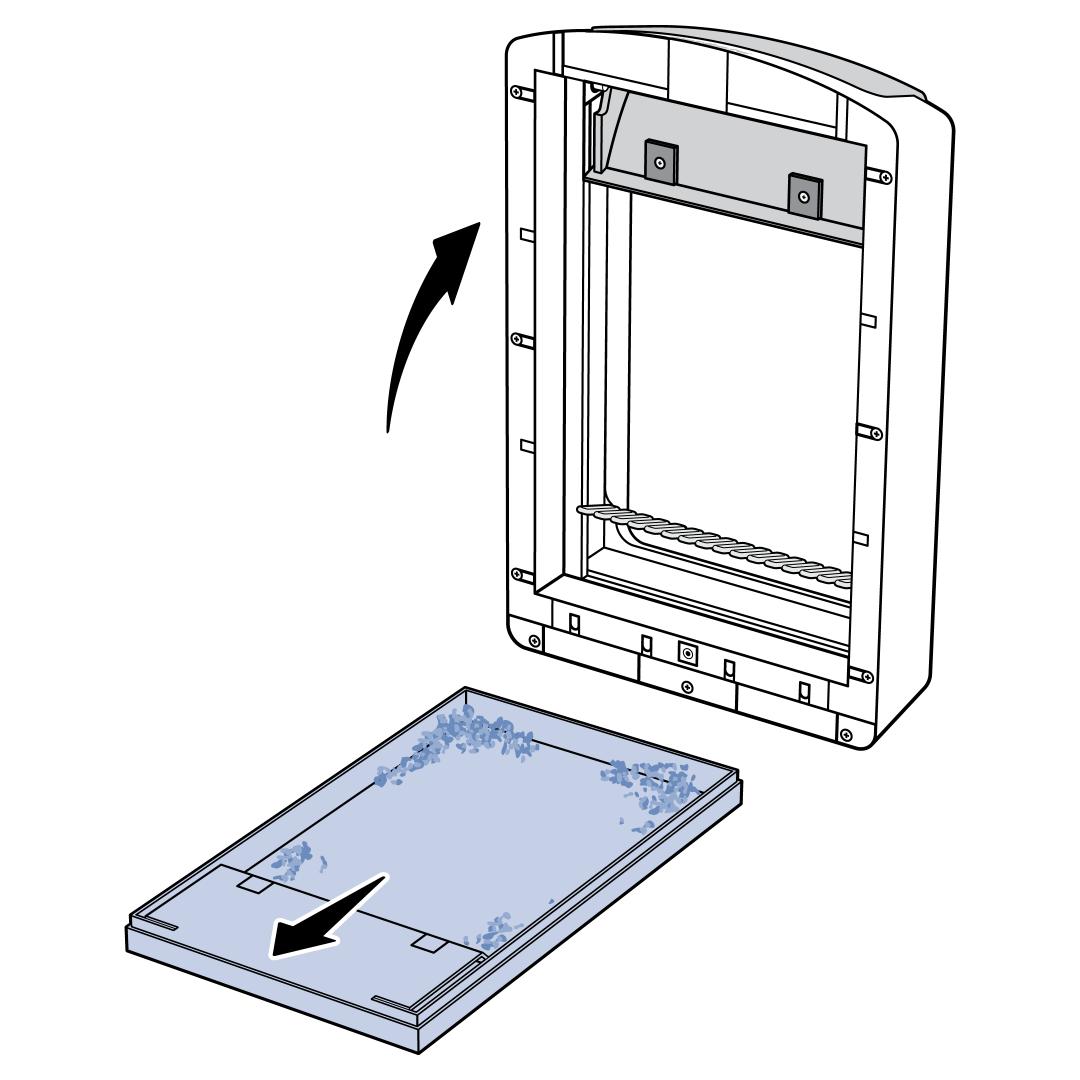

Remove the old tray by lifting your litter box from the front using the handle to an upright position and pull out the old tray.

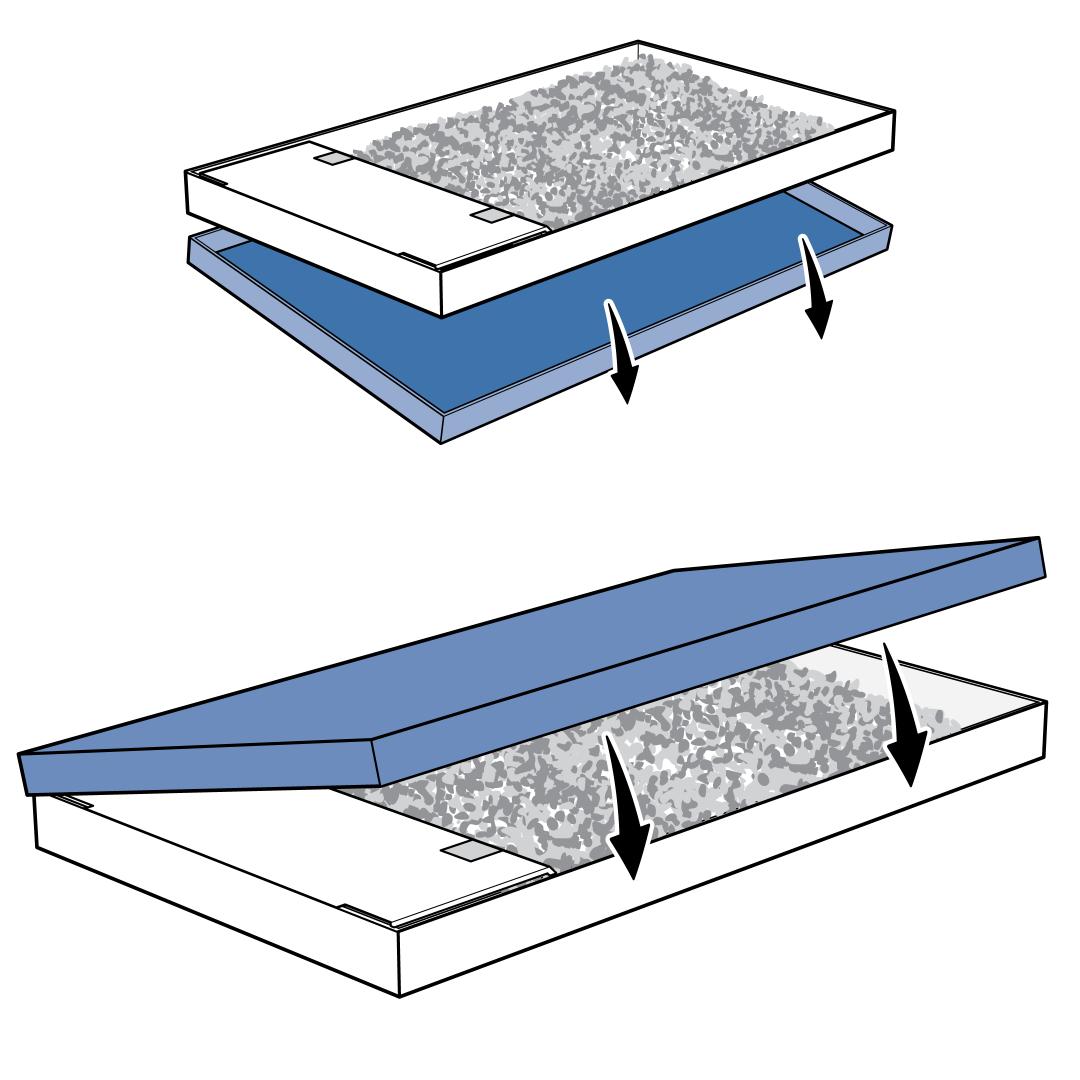

Remove the lid from under the tray and close it over the tray. Dispose of the old tray in your trash bin.
You may want to tape the lid closed and/or place it in a trash bag before disposal.

Lift straight up on the waste trap cover until it pops out of the notches on the litter box base to remove.
Do not pull up one side at a time. Pulling one side up first can result in damage.

Clean the sensors. Even if the sensors look clean, wipe them with a cotton swab and rubbing alcohol to remove any film that may prevent the rake from working.

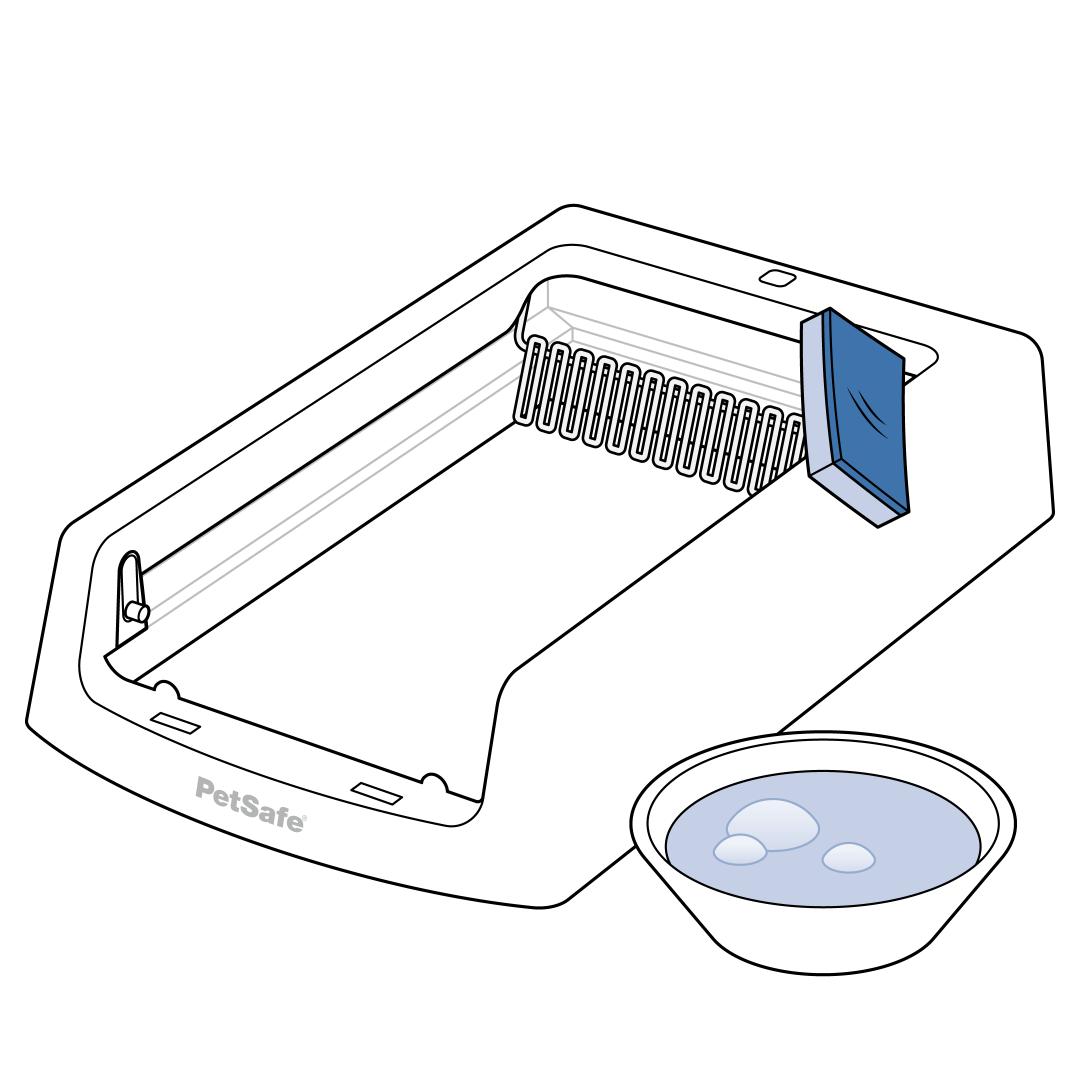

Clean the rake with a sponge or soft brush. Wipe all surfaces on the litter box frame with a cloth or sponge using mild soap and water.
DO NOT use any soaps or cleaners that would leave residue on the sensors. DO NOT use bleach or chemicals to clean as they can act as a repellent to your cat.
Let all parts thoroughly dry before reassembling.

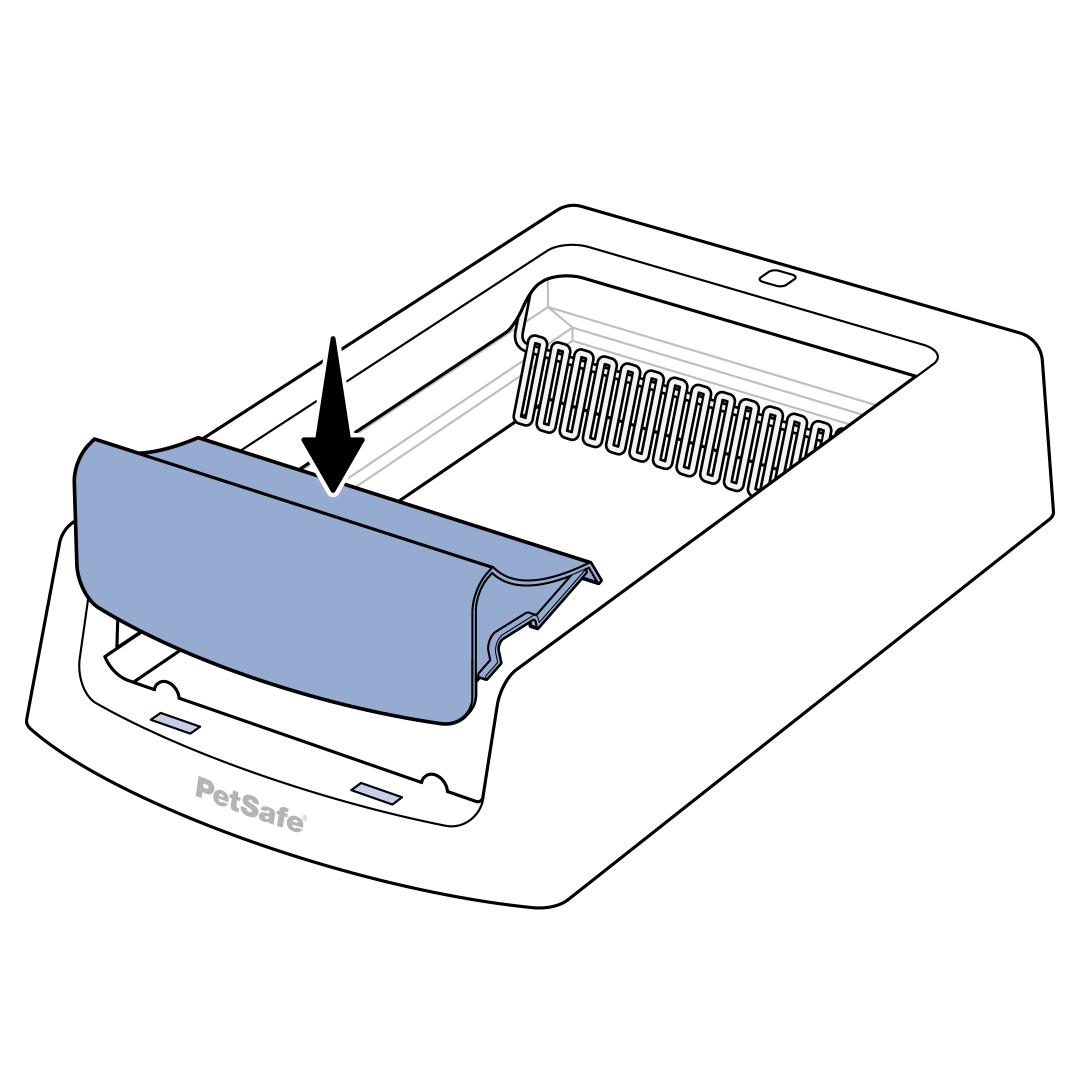

Replace the waste trap cover by inserting the tabs on the cover into the slots at the front of the litter box frame. Press down on the waste trap cover until it snaps into place.
Add a new litter tray. For more information, visit How To Change the Litter Tray in My PetSafe® ScoopFree® Crystal Classic Self-Cleaning Litter Box.
Plug the power adaptor back into the wall outlet.
