How To Assemble My PetSafe® Multi-Tier Pet Fountain
Important Information
- Before using the fountain for the first time, thoroughly wash all parts. For detailed instructions, visit our article How To Disassemble & Clean My PetSafe®Multi-Tier Pet Fountain.
- Disassemble and clean all the components of the pump. For detailed instructions, visit our article How to Take Apart My PetSafe® Drinkwell® Fountain Pump for Cleaning.
After cleaning the pump, reassemble it by replacing the impeller, stator, and face plate.

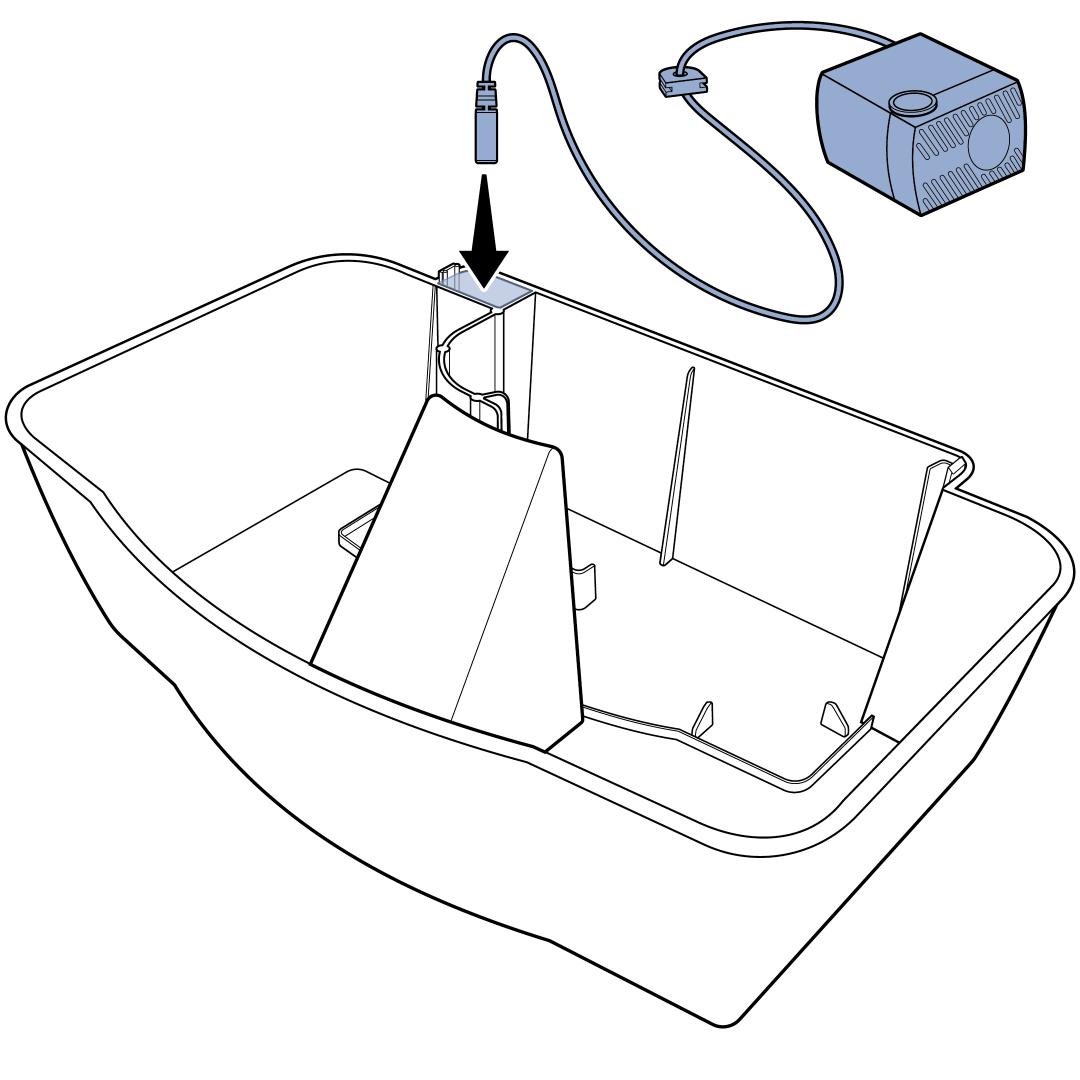

Feed the pump cord through the hole on the back of the bowl. Remove the extra slack from the cord and push the rubber seal firmly into the hole.

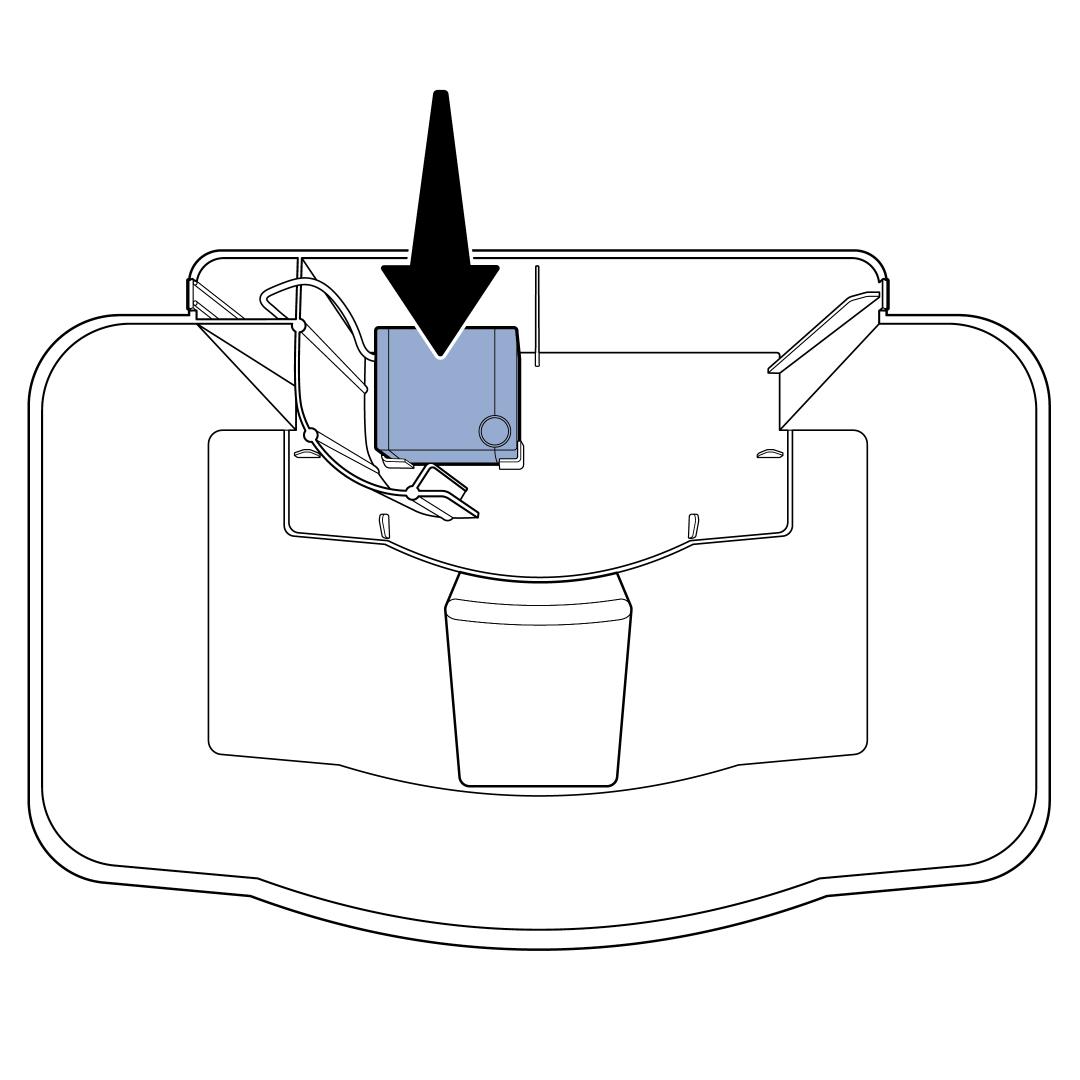

Place the pump in the square indention in the bowl and press down to secure the suction feet.

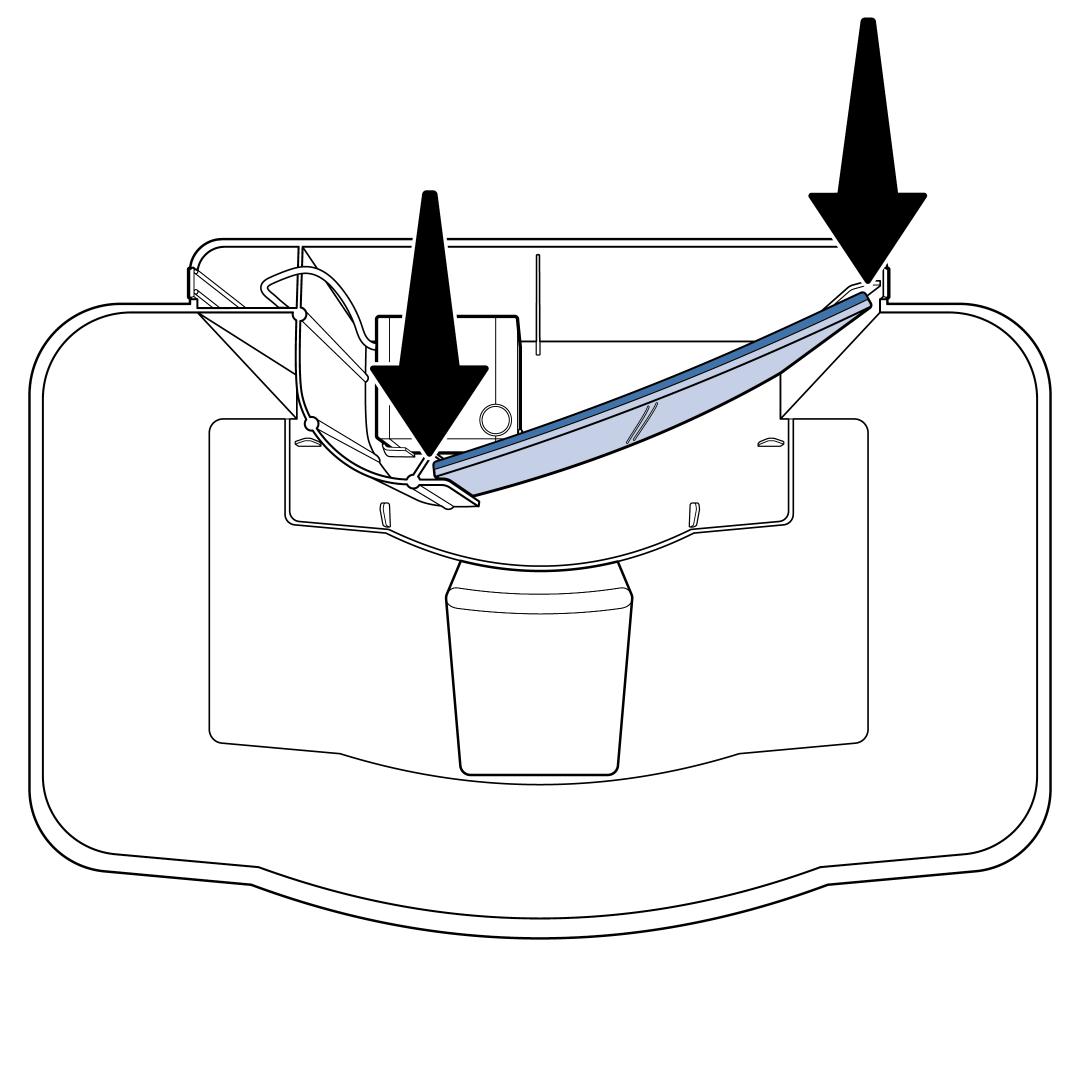

Rinse the carbon filter thoroughly under cold water to remove any loose carbon dust. Insert the filter into the filter housing with the black side facing the pump.

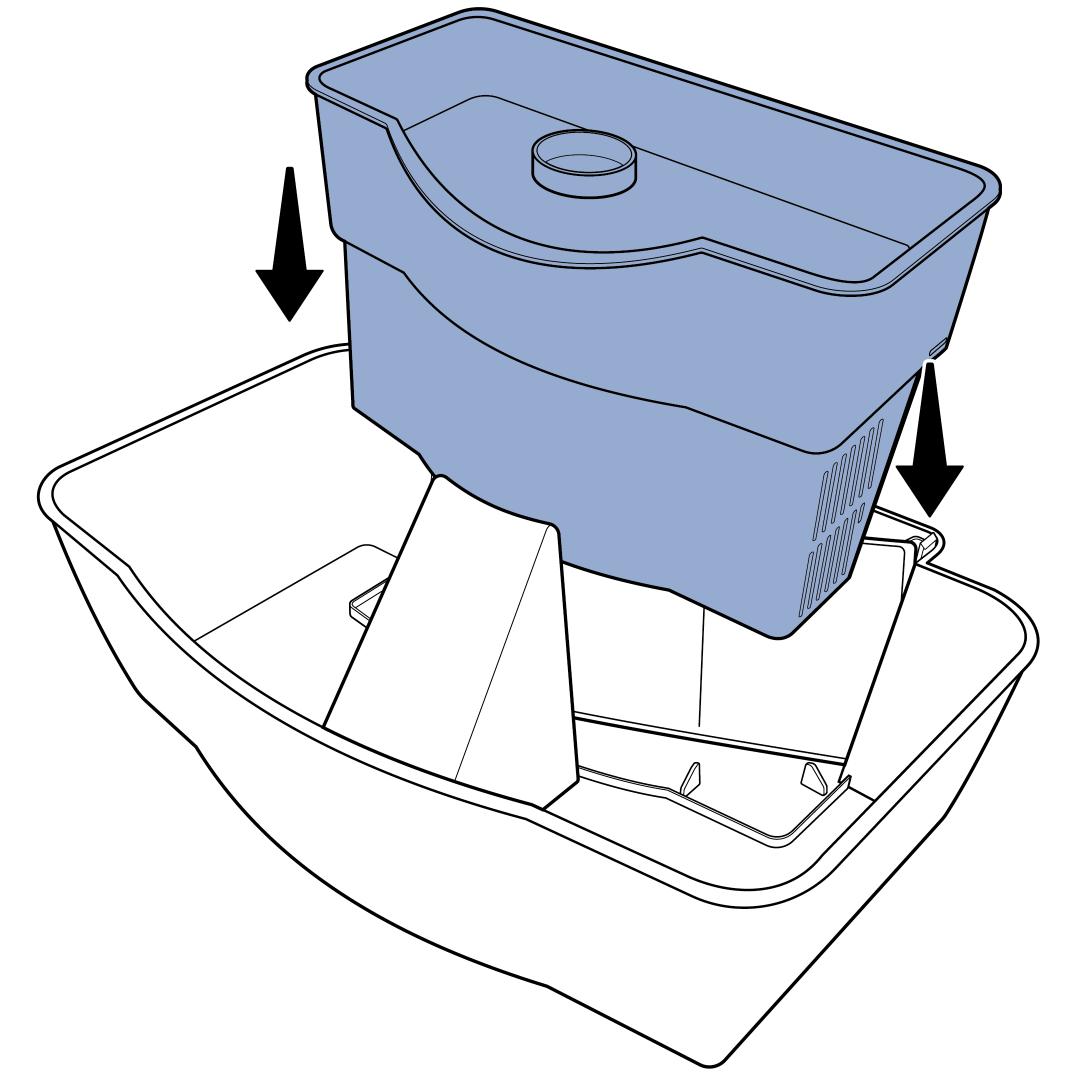

Place the filter housing on the bowl over the pump and filter. Press down firmly to ensure both sides snap into place.

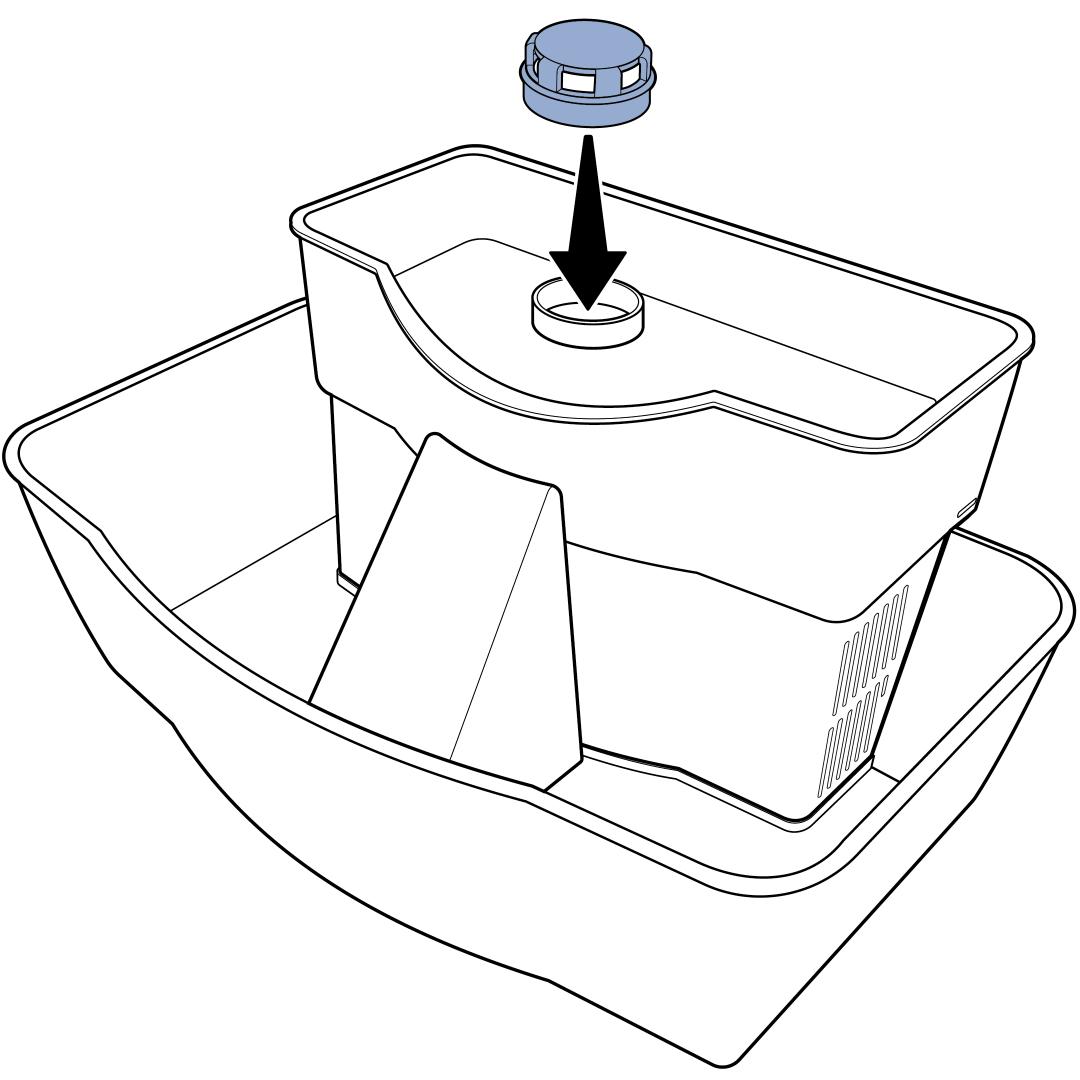

Attach the housing cap.

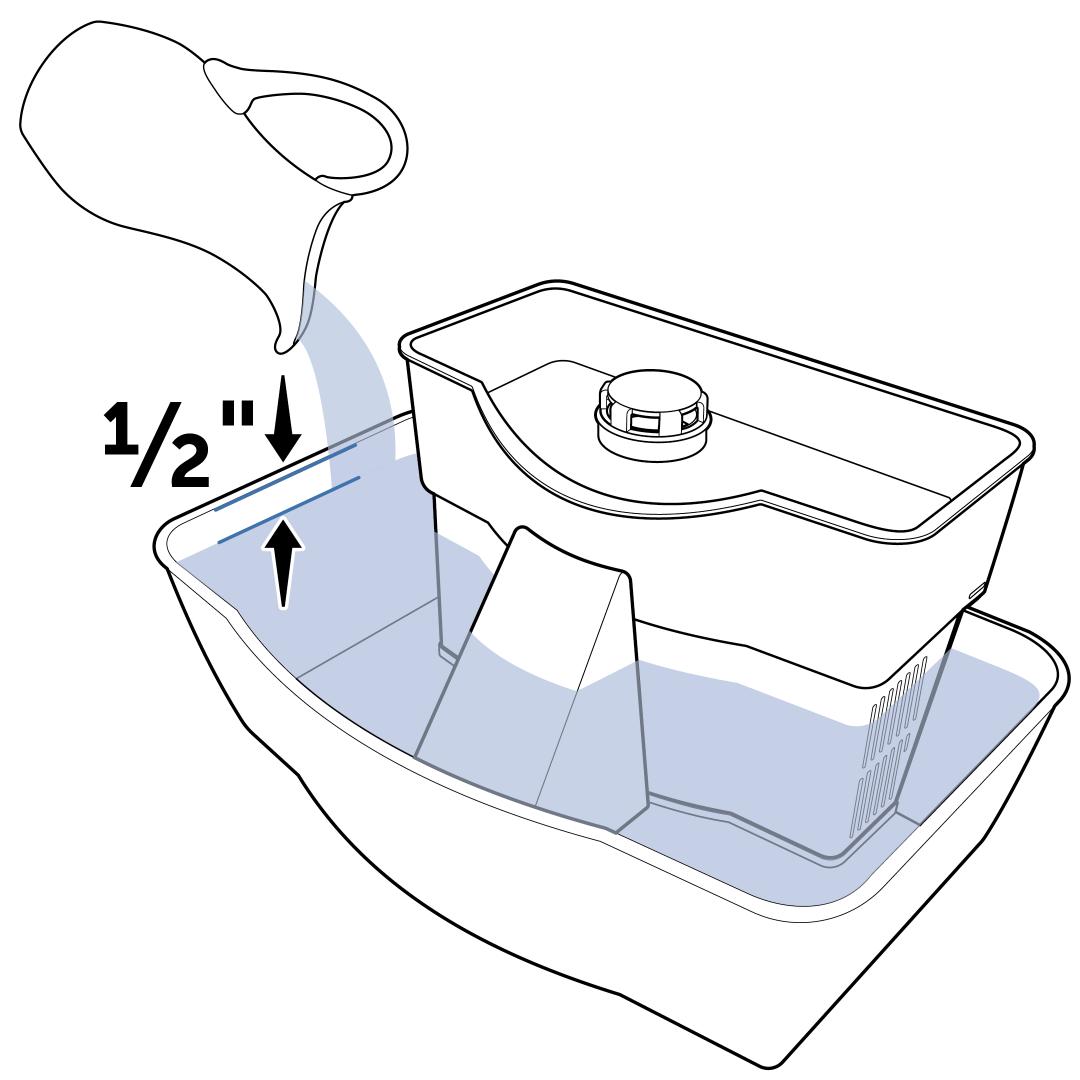

Pick up the fountain by the bowl and place it in a desired location. Pour water into the bowl and the housing. Leave a ½ inch of space between the water level and the rim of the bowl.

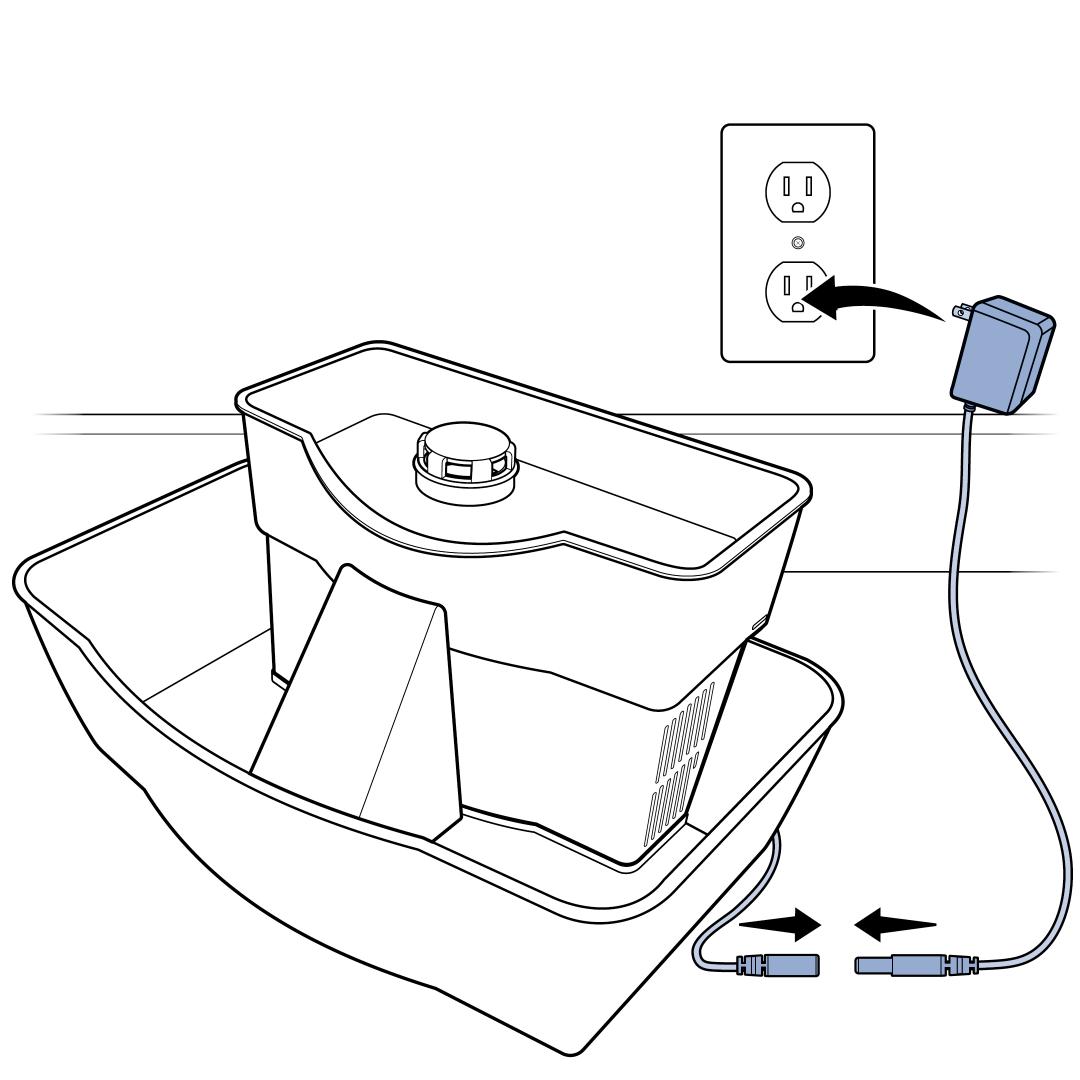

Make sure the electrical power cord, the adaptor and your hands are completely dry. Connect the in-line plug and make sure no silver is showing, then plug the adaptor into a standard electrical wall outlet.
